Rubber Moulded Parts

We develop and manufacture moulded rubber parts and membranes from all known rubber-elastic materials. We use state-of-the-art CNC-controlled vacuum presses, injection moulding machines (compression, injection and transfer moulding) and CAD/CAM systems. We manufacture the necessary moulds in our own tool shop.

We develop and manufacture high-quality rubber-metal and rubber-plastic parts on customer request. Carrier materials are steel, stainless steel, aluminium, brass and various plastics. All known rubber elastomer materials are used as sealing materials. A multitude of material combinations is possible.

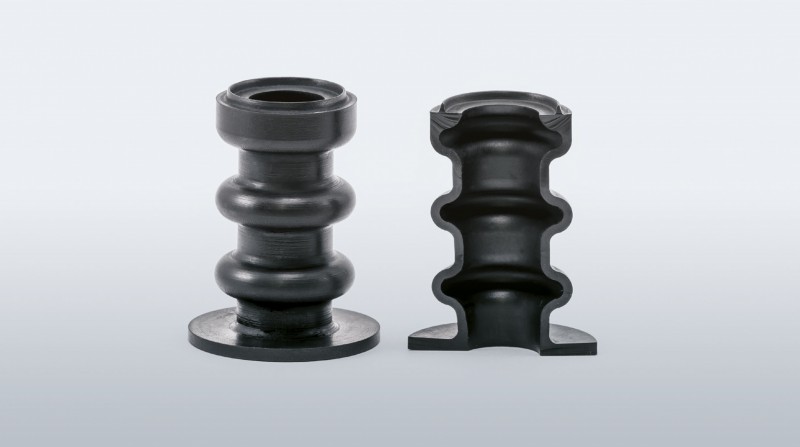

Moulded Rubber Parts

Moulded Rubber Parts

Manufacturing according to customer drawings and specifications in compression or injection moulding processes. These parts are produced in all common elastomers and special materials.

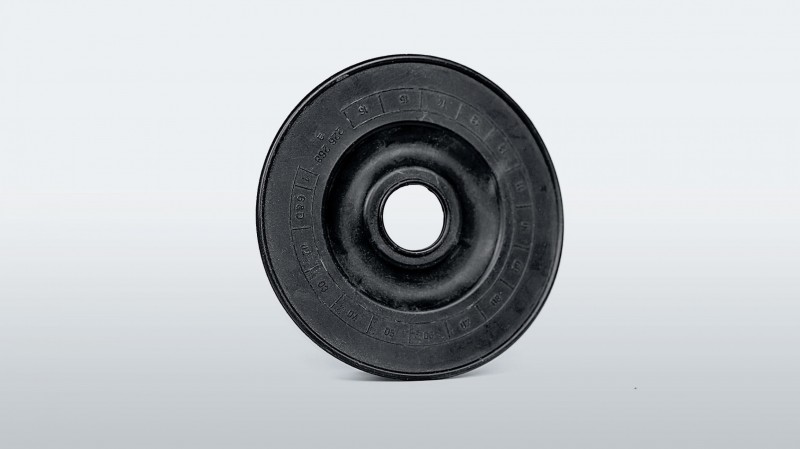

Membranes

Membranes

Our elastomer membranes without fabric insert are used in a wide variety of industries, e.g. mechanical engineering, gas industry, pneumatics, medical technology, automotive engineering, food industry, etc.

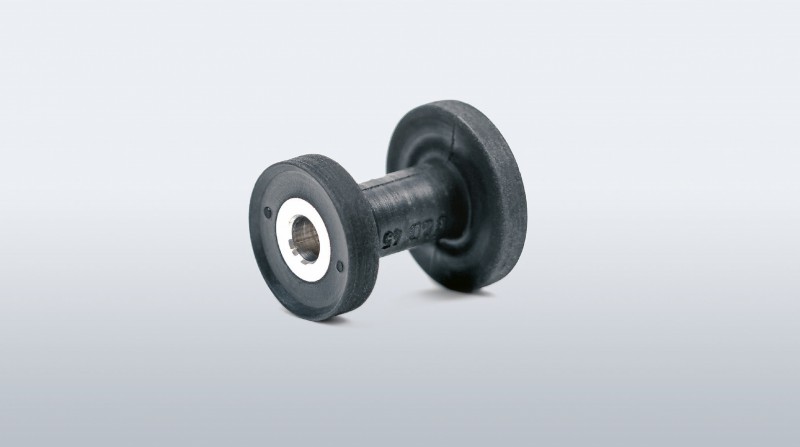

Gummi-Metall- und Gummi-Kunststoff-Verbindungsteile

Rubber-Metal and
Rubber-Plastic Bonded Parts

Manufactured according to customer drawings and specifications. The following carrier materials are available: steel, aluminium, brass, stainless steel in various grades and fibre-reinforced plastics. A variety of material combinations are possible.

Overview elastomers

Overview FPM/FKM Compounds

Material description
There are many types of FKM's based on the monomers used to build the backbone of the elastomer. There are also three curing systems that have different performance characteristics. These characteristics define the performance of the product. Contact your supplier to determine which product and curing system is best suited for your process.

Main Properties
Excellent resistance to high temperatures; excellent resistance to oil, petrol, hydraulic fluids and hydrocarbon solvents; very good impermeability to gases and vapours; very good resistance to weathering, oxygen, ozone and sunlight; good flame retardancy.

Limits
Medium tear and cut resistance, very low resistance to oxygenated solvents.

Article NameColorApproval and PropertiesCross-linking / TypeTemperature °CShore AArticle Number
Trygonal specific
PDF
Data Sheet
FPM 50blackbisphenolic cross-linked, type A-15 / +2205080-01-50000PDF, 201 KB
FPM 50blackSteam resistant materialcorresponds to type G5080-01-50001
FPM 50greenperoxide cross-linked, type G-15 / +2005080-01-50005PDF, 211 KB
FPM 57greenperoxide cross-linked, type F-10 / +2105780-01-57000
FPM 60blackbisphenolic cross-linked, type A-20 / +2106080-01-60000PDF, 216 KB
FPM 60greenbisphenolic cross-linked, type A-10 / +2206080-01-60003PDF, 209 KB
FPM 60blackSteam resistant materialbisphenolic cross-linked, type A-20 / +2206080-01-60004
FPM 65blackbisphenolic cross-linked, type A-20 / +2106580-01-65000
FPM 69blackbisphenolic cross-linked, type A-20 / +2207080-01-70000
FPM 70greenbisphenolic cross-linked, type A-20 / +2107080-01-70001PDF, 210 KB
FPM 70none7080-01-70003
FPM 70redMMN 387bisphenolic cross-linked, type A-20 / +2207080-01-70004PDF, 196 KB
FPM 70greenbisphenolic cross-linked, (60% fluorine)-15 / +2207080-01-70005
FPM 70blackbisphenolic cross-linked-15 / +2207080-01-70006
FPM 70black-40 / +2057080-01-70007
FPM 70blackFDA compliant-28 / +2307080-01-70008
FPM 70blueFDA compliantbisphenolic cross-linked, type A-20 / +2207080-01-70009
FPM 70whiteFDA compliantbisphenolic cross-linked, type A-15 / +2207080-01-70010
Article NameColorApproval and PropertiesCross-linking / TypeTemperature °CShore AArticle Number
Trygonal specific
PDF
Data Sheet
FPM 70blackbisphenolic cross-linked, type A-30 / +2007080-01-70011
FPM 70blackperoxide cross-linked, type G (GLT)7080-01-70013
FPM 70green7080-01-70017
FPM 70red / blue / greenFDA compliant7080-01-70018
FPM 70greenFDA compliant7080-01-70019
FPM 70noneFDA compliant7080-01-70020
FPM 70blackFDA compliantbisphenolic cross-linked, type A-20 / +2107080-01-70021
FPM 70blackFDA complaint, DVGW_EN_549_E1_H3bisphenolic cross-linked, type A-25 / +2307080-01-70052PDF, 220 KB
FPM 70blackFDA compliantperoxide cross-linked, type G-18 / +2007080-01-70063PDF, 220 KB
FPM 70whitebisphenolic cross-linked, type A-16 / +2007080-01-70077PDF, 200 KB
FPM 75blackDVGW 549bisphenolic cross-linked, type A-15 / +2107580-01-75000PDF, 218 KB
FPM 75brownFDA compliantdiaminic cross-linked, corresponds to Type A-15 / +2207580-01-75003
FPM 75blackperoxide cross-linked, type F-20 / +2107580-01-75005PDF, 213 KB
FPM 75blackOptimized against explosive decompressionperoxide crosslinked, (71% fluorine)-5 / +2007580-01-75006PDF, 222 KB
FPM 75blackElectrically conductiveperoxide cross-linked, type G-20 / +2107580-01-75014
FPM 80blackType A8080-01-80000
FPM 80blackFDA compliant-28 / +2308080-01-80001
FPM 80blackbisphenolic cross-linked, type B-20 / +2108080-01-80002PDF, 213 KB
Article NameColorApproval and PropertiesCross-linking / TypeTemperature °CShore AArticle Number
Trygonal specific
PDF
Data Sheet
FPM 80black-28 / +2308080-01-80005
FPM 80green8080-01-80007
FPM 80red8080-01-80008
FPM 80none8080-01-80009
FPM 80greenbisphenolic cross-linked, type B-17 / +2108080-01-80022PDF, 213 KB
FPM 80blackbisphenolic cross-linked, type A-15 / +2108080-01-80023PDF, 210 KB
FPM 80blackbisphenolic cross-linked, (60% fluorine)8080-01-80024
FPM 80blackViton-Extreme, material machinableperoxide crosslinked, (66% fluorine)-5 / +2108080-01-80038PDF, 216 KB
FPM 85blackcorresponds to type GF8580-01-85000
FPM 85brownFDA compliant, material machinablebisphenolic crosslinked, (66 / 68.5% fluorine)-25 / +2208580-01-85002PDF, 220 KB
FPM 85whiteFDA compliant, material machinableperoxide crosslinked, (70% fluorine)-20 / +2108580-01-85005PDF, 219 KB
FPM 85brownFDA compliant, material machinablebisphenolic cross-linked, type A-20 / +2108580-01-85006
FPM 85blackMaterial machinablebisphenolic cross-linked, type A8580-01-85007
FPM 90blackbisphenolic cross-linked, type A-20 / +2109080-01-90000
FPM 90blackperoxide cross-linked, Type GF-30 / +1909080-01-90006PDF, 217 KB
FPM 90black-28 / +2309080-01-90008
FPM 90green9080-01-90011
FPM 90brown9080-01-90012
Article NameColorApproval and PropertiesCross-linking / TypeTemperature °CShore AArticle Number
Trygonal specific
PDF
Data Sheet
FPM 95blackbisphenolic cross-linked-28 / +2009580-01-95001
FPM 53greenFDA complaintbisphenolic cross-linked, type A-15 / +2205380-01-V5000PDF, 215 KB
FPM 70blackMMN 387, MTL5076peroxide cross-linked, type G-20 / +1907080-01-V7011PDF, 217 KB
FPM 70blackperoxide cross-linked-20 / +2007080-01-V7028
FPM 75blackResistant to chlorine gas7580-01-V7510
FPM 75blackOptimized against explosive decompressionbisphenolic cross-linked-5 / +2107580-01-V7512
FPM 80blackbisphenolic cross-linked, type A-20 / +2008080-01-V8002PDF, 207 KB

Overview NBR Compounds

Material Description
NBR are copolymers of butadiene (BD) and acrylonitrile (ACN). The monomer ratio can be varied over a wide range. NBR with higher ACN offers improved oil resistance, fuel resistance and tear strength.

Main Properties
Very good resistance to oil and petrol: excellent resistance to petroleum-based hydraulic fluids, wide operating temperature range, good resistance to hydrocarbon solvents, very good resistance to alkalis and solvents.

Limits
Low resistance to ozone, sunlight and natural ageing, poor resistance to oxygenated solvents.

Article NameColorApproval and PropertiesCross-linking / TypeTemperature °CShore AArticle Number
Trygonal specific
PDF
Data Sheet
NBR 40blackDVGW 549: H1/82sulphur cross-linked-20 / +1204080-02-40000
NBR 40blackMMN375sulphur cross-linked-40 / +1004080-02-40001PDF, 213 KB
NBR 45blackElectrically conductivesulphur cross-linked-40 / +1004580-02-45001PDF, 216 KB
NBR 50blackFDA compliant, complies with BGAsulphur cross-linked-35 / +1005080-02-50000PDF, 216 KB
NBR-SBR 50blacksulphur cross-linked-30 / +805080-02-50001
NBR 50blacksulphur cross-linked0 / +1005080-02-50002
NBR 50beigeFDA und BfR konformsulphur cross-linked-30 / +1205080-02-50003
NBR 50blackDIN EN 549 DVGWsulphur cross-linked-20 / +805080-02-50005PDF, 225 KB
NBR 50blacksulphur cross-linked-40 / +1005080-02-50019PDF, 195 KB
NBR 60blacksulphur cross-linked-30 / +1006080-02-60004
NBR 60greyRAL 7012sulphur cross-linked-35 / +1006080-02-60007
NBR 60blackDVGW DIN EN 549sulphur cross-linked-20 / +806080-02-60009
NBR 60blacksulphur cross-linked6080-02-60012
NBR 60lightBGVV Part XXI Cat. 3 compliantsulphur cross-linked-25 / +806080-02-60013
NBR 65blacksulphur cross-linked-40 / +1006580-02-65000PDF, 195 KB
NBR 65greyRAL 7012sulphur cross-linked-35 / +1006580-02-65001
NBR 70blackFDA konformperoxide cross-linked-35 / +1207080-02-70000
NBR 70blackperoxide crosslinked / 35% ACN-30 / +1307080-02-70002
Article NameColorApproval and PropertiesCross-linking / TypeTemperature °CShore AArticle Number
Trygonal specific
PDF
Data Sheet
NBR 70blackElectrically conductivesulphur cross-linked-35 / +1007080-02-70003
NBR 70blacksulphur cross-linked-40 / +1007080-02-70006
NBR 70blacksulphur cross-linked7080-02-70013
NBR 70blackDVGW DIN EN 549sulphur cross-linked-35 / +1007080-02-70028PDF, 210 KB
NBR 70blueFDA compliant, metal detectableperoxide cross-linked-35 / +1207080-02-70082PDF, 206 KB
NBR 80blacksulphur cross-linked-35 / +1008080-02-80000
NBR 80blacksulphur cross-linked-25 / +1108080-02-80001
NBR 80greyRAL 7038sulphur cross-linked-30 / +1208080-02-80002
NBR 77blacksulphur cross-linked-40 / +1107780-02-80004
NBR-SBR 90blacksulphur cross-linked-35 / +1009080-02-90000
NBR 90blueFDA compliant9080-02-90002
NBR 90blackCompliant according to UL 94 HBsulphur cross-linked-40 / +1009080-02-90003PDF, 217 KB
NBR 90blackperoxide cross-linked-30 / +1109080-02-90004
NBR 90blacksulphur cross-linked-30 / +1209080-02-90005
NBR 85blackMaterial machinablesulphur cross-linked-20 / +908580-02-V8500PDF, 210 KB

Overview EPDM Compounds

Material Description
EPM and EPDM are both co- and terpolymers of ethylene, propylene and a monomer containing diene (ter-employer) to facilitate vulcanization. The monomer ratios are varied to obtain specific properties and properties. Due to their unique combination of properties, they can be used in a variety of products.

Main Properties
EPM elastomers have excellent resistance to ozone, water and steam, alkalis and acids, salt solutions and oxygenated solvents. EPM and EPDM have very low temperature resistance and excellent electrical properties.

Limits
Poor resistance to oil, petrol and hydrogenated solvents.

Article NameColorApproval and PropertiesCross-linking / TypeTemperature °CShore AArticle Number
Trygonal specific
PDF
Data Sheet
EPDM 40lightsulphur cross-linked-40 / +1204080-03-40000PDF, 209 KB
EPDM 50blackFDA compliantsulphur cross-linked-40 / +1105080-03-50000PDF, 218 KB
EPDM 50whiteFDA and BfR compliantperoxide cross-linked-40 / +1005080-03-50004
EPDM 50blackFDA compliantperoxide cross-linked-40 / +1405080-03-50012PDF, 214 KB
EPDM 60blackperoxide cross-linked-40 / +1206080-03-60001PDF, 221 KB
EPDM 60blackFDA compliantperoxide cross-linked-40 / +1006080-03-60005
EPDM 60blackFDA and BfR compliantsulphur cross-linked-30 / +1206080-03-60008
EPDM 65blackKTW D1/D26580-03-65000
EPDM 70blackFDA compliantperoxide cross-linked-40 / +1207080-03-70000PDF, 221 KB
EPDM 70blackElectrically non-conductivesulphur cross-linked-40 / +1207080-03-70001
EPDM 70blackFDA compliantsulphur cross-linked-40 / +1307080-03-70002PDF, 219 KB
EPDM 70blackperoxide cross-linked-40 / +1407080-03-70004
EPDM 70whiteFDA compliantperoxide cross-linked-40 / +1307080-03-70007
EPDM 70blacksulphur cross-linked-50 / +1107080-03-70008
EPDM 75lightFDA compliantsulphur cross-linked-40 / +1407580-03-75000
EPDM 77blackperoxide cross-linked-40 / +1007780-03-77000
EPDM 80blackFDA compliantperoxide cross-linked-40 / +1208080-03-80000PDF, 221 KB
EPDM 80blackHot water resistant-45 / +1508080-03-80003
Article NameColorApproval and PropertiesCross-linking / TypeTemperature °CShore AArticle Number
Trygonal specific
PDF
Data Sheet
EPDM 80blacksulphur cross-linked-50 / +1458080-03-80004
EPDM 80blackFDA compliant-45 / +1508080-03-80005
EPDM 90blackW 270 D1peroxide cross-linked-45 / +1259080-03-V9002PDF, 216 KB

Overview CR Compounds

Material Description
Polychloroprene is an excellent universal elastomer with an attractive balance of properties and few practical limitations. Universal neoprene grades are divided into two groups: sulphur modified grades and mercaptan modified grades. Sulphur-modified neoprenes have increased tear strength and elasticity, while mercaptan-modified neoprenes have better resistance to heat and compression set.

Main Properties
Good inherent flame resistance; moderate resistance to oil and petrol; excellent adhesion to fabrics and metals; very good resistance to weathering, ozone and natural ageing; good resistance to abrasion and bending fracture; very good resistance to alkali and acids.

Limits
Poor to good resistance to aromatic and oxygenated solvents; limited flexibility at low temperatures.

Article NameColorApproval and PropertiesCross-linking / TypeTemperature °CShore AArticle Number
Trygonal specific
PDF
Data Sheet
Neopren 40blacksulphur cross-linked-35 / +1004080-04-40001
Neopren 50blacksulphur / ETU networked-35 / +1005080-04-50000PDF, 216 KB
Neopren 50blacksulphur / ETU networked5080-04-50001
Neopren 60blacksulphur cross-linked-35 / +1006080-04-60000PDF, 216 KB
Neopren 70blacksulphur cross-linked-30 / +1007080-04-70000
Neopren 75blacksulphur cross-linked-35 / +1107580-04-75000
Neopren 80blacksulphur / ETU networked-35 / +1308080-04-80000

Overview TFE Compounds

Material Description
High-quality fluoroelastomer in use.

Main Properties
Excellent resistance to amines and amine corrosion inhibitors, etchants and other high pH media, sour gas and oil, phosphate ester hydraulic fluid and glycol brake fluid.

Limits
Higher swelling in hydrocarbons, chlorinated solvents and esters than in FKM's. More limited in low temperature applications than in FKM's. May not be used in aliphatic or aromatic hydrocarbon fluids.

Article NameColorApproval and PropertiesCross-linking / TypeTemperature °CShore AArticle Number
Trygonal specific
PDF
Data Sheet
Aflas 70blackperoxide cross-linked-5 / +2307080-05-70000
TFE 80blackFDA compliantperoxide cross-linked-5 / +2308080-05-80000
Aflas 90blackperoxide cross-linked-5 / +2309080-05-90000
FEPM 75blackbisphenolic cross-linked-10 / +2207580-05-V7500PDF, 212 KB
FEPM 90blackperoxide cross-linked-5 / +2209080-05-V9001PDF, 213 KB

Overview MVQ Compounds

Material Description
The most outstanding property of silicone is its ability to maintain rubber-like properties through extreme temperatures. The operating temperatures range from -55 °C to +200 °C. Silicones are normally used in applications that require high resistance.

Main Properties
Excellent heat resistance; excellent flexibility at low temperatures; low compression set; very good electrical insulation; excellent resistance to weathering, ozone, sunlight and oxidation; excellent colour stability.

Limits
Poor abrasion resistance, resistance to tea and cut growth; low tensile strength; poor resistance to oil, petrol and solvents; poor resistance to alkalis and acids.

Article NameColorApproval and PropertiesCross-linking / TypeTemperature °CShore AArticle Number
Trygonal specific
PDF
Data Sheet
MVQ 30transparentperoxide cross-linked-45 / +2003080-06-30000
MVQ 30redFDA and BfR compliantperoxide cross-linked-40 / +2003080-06-30001
MVQ 35transparentFDA compliantperoxide cross-linked-45 / +2003580-06-35000
MVQ 40transparentFDA compliantperoxide cross-linked-50 / +1804080-06-40000
MVQ 40redperoxide cross-linked-50 / +2004080-06-40001
MVQ 40blackFDA and BfR compliantperoxide cross-linked-40 / +1804080-06-40002
MVQ 40transparentFDA compliantperoxide cross-linked-50 / +2004080-06-40004
MVQ 40redAddition 40% Cu powder-45 / +1804080-06-40005
MVQ 45transparentFDA and BfR compliantperoxide cross-linked-45 / +1704580-06-45003PDF, 218 KB
MVQ 50redFDA compliantperoxide cross-linked-40 / +2105080-06-50000
MVQ 50 / rot P3redFDA compliantperoxide cross-linked-40 / +2005080-06-50001PDF, 218 KB
MVQ 50greyperoxide cross-linked-40 / +2505080-06-50002
MVQ 50transparentFDA compliant-45 / +2005080-06-50003
MVQ 50blueRAL 50105080-06-50004
MVQ 50redAddition 40% Cu powderperoxide cross-linked-45 / +2005080-06-50005
MVQ 50blackperoxide cross-linked-40 / +1805080-06-50006
MVQ 50whiteperoxide cross-linked-40 / +1805080-06-50008
Silikon 50transparent-40 / +1805080-06-50010
Article NameColorApproval and PropertiesCross-linking / TypeTemperature °CShore AArticle Number
Trygonal specific
PDF
Data Sheet
Silikon 60beigeperoxide cross-linked-40 / +1806080-06-60000PDF, 217 KB
MVQ 60redAddition 40% Cu powderperoxide cross-linked-40 / +2106080-06-60005
MVQ 60transparentFDA compliantperoxide cross-linked-40 / +2006080-06-60006
MVQ 60blackperoxide cross-linked-40 / +2306080-06-60009
Silikon 60blackperoxide cross-linked-40 / +2706080-06-60029PDF, 210 KB
Silikon 60greyRAL 7040peroxide cross-linked-40 / +2006080-06-60041PDF, 211 KB
MVQ 65redperoxide cross-linked-40 / +2106580-06-65000
MVQ 70redFDA compliantperoxide cross-linked-40 / +2007080-06-70000PDF, 216 KB
MVQ 70redFDA and BfR compliant ,' additive 40% Cu powderperoxide cross-linked-40 / +2107080-06-70002
Silikon 70red brownFDA and BfR compliantperoxide cross-linked-40 / +2307080-06-70004PDF, 215 KB
MVQ 70blackperoxide cross-linked7080-06-70005
MVQ 70blueperoxide cross-linked-40 / +1807080-06-70006
MVQ 70transparentFDA and BfR compliantDicumyl peroxide-40 / +1807080-06-70007
MVQ 70red brownperoxide cross-linked-55 / +2107080-06-70008
MVQ 80redperoxide cross-linked-40 / +2308080-06-80000PDF, 215 KB
MVQ 80transparent-45 / +2008080-06-80002
Silikonkautschuk 70transparentDicumyl peroxide7080-06-V7000
MVQ 90whiteFDA and BfR compliantperoxide cross-linked9080-06-V9001PDF, 214 KB

Overview MFQ Compounds

Material Description
The most outstanding property of silicone is its ability to maintain rubber-like properties through extreme temperatures. The operating temperatures range from -55 °C to +200 °C. Silicones are normally used in applications that require high resistance.

Main Properties
Excellent heat resistance; excellent flexibility at low temperatures; low compression set; very good electrical insulation; excellent resistance to weathering, ozone, sunlight and oxidation; excellent colour stability.

Limits
Poor abrasion resistance, resistance to tea and cut growth; low tensile strength; poor resistance to oil, petrol and solvents; poor resistance to alkalis and acids.

Article NameColorApproval and PropertiesCross-linking / TypeTemperature °CShore AArticle Number
Trygonal specific
PDF
Data Sheet
MFQ 60beigeWLB 5.5688 Releaseperoxide cross-linked-40 / +2006080-07-60001
MFQ 60blueDVGW DIN EN 549peroxide cross-linked-20 / +1506080-07-60002
MFQ 70dark brownperoxide cross-linked-40 / +2107080-07-70000
Fluorsilikon 60red brownperoxide cross-linked-45 / +2206080-07-V6002PDF, 216 KB
Fluorsilikon 70blueperoxide cross-linked-40 / +2207080-07-V7000PDF, 216 KB

Overview NK Compounds

Material Description
Despite more modern synthetic rubbers, natural rubber is still used for engine suspensions, machine bearings, rubber-to-metal compounds, clutches, damping elements and similar components.

Main Properties
Natural rubber (NR) is a highly polymeric isoprene with very good physical properties, very high tensile strength, very good elasticity, very good low temperature properties, good abrasion resistance and excellent dynamic properties. This combination is rarely achieved by synthetic elastomers.

Limits
Without the appropriate addition of protective agents, however, the resistance to ageing and ozone is only slight. There is no resistance to mineral oils and greases.

Article NameColorApproval and PropertiesCross-linking / TypeTemperature °CShore AArticle Number
Trygonal specific
PDF
Data Sheet
NK-SBR 43black4380-08-43000
NK-SBR 53blacksulphur cross-linked-40 / +905380-08-53000
NK 70black7080-08-70000

Overview HNBR Compounds

Material Description
Hydrogenated nitrile (HNBR) is a family of products designed to eliminate some of the defects of nitriles. HNBR shows improved chemical resistance, a higher service temperature and a lower brittle temperature than normal nitrile. HNBR polymers are reacted with hydrogen to hydrogenate part of the unsaturation of NBR to improve chemical compatibility with certain media such as sour gas, ozone and some additive packages.

Main Properties
Very good resistance to oil and petrol: excellent resistance to petroleum-based hydraulic fluids, wide operating temperature range, good resistance to hydrocarbon solvents, very good resistance to alkalis and solvents.

Limtis
Low resistance to ozone, sunlight and natural ageing, poor resistance to oxygenated solvents.

Article NameColorApproval and PropertiesCross-linking / TypeTemperature °CShore AArticle Number
Trygonal specific
PDF
Data Sheet
H-NBR 50blackperoxidisch vernetzt-25 / +1505080-09-50000
H-NBR 70black-40 / +1707080-09-70000
H-NBR 70blackFDA compliantperoxide cross-linked-25 / +1507080-09-70002PDF, 201 KB
H-NBR 70blackperoxide cross-linked-54 / +1757080-09-70003
H-NBR 70blackperoxide cross-linked-25 / +1507080-09-70004PDF, 197 KB
H-NBR 90black-35 / +1509080-09-90000
H-NBR 70blackperoxide cross-linked-40 / +1507080-09-V7000PDF, 197 KB
H-NBR 80blackMaterial machinableperoxide cross-linked-25 / +1508080-09-V8000PDF, 198 KB
H-NBR 80black8080-09-V8004
H-NBR 80blackFriction modified materialperoxide cross-linked-25 / +1508080-09-V8008PDF, 197 KB
H-NBR 85blackOptimized against explosive decompressionperoxide cross-linked-25 / +1508580-09-V8500PDF, 200 KB
H-NBR 85blackMaterial machinableperoxide cross-linked-20 / +1508580-09-V8503PDF, 216 KB

Overview SBR Compounds

Material Description
SBR is similar to natural rubber in most respects and is the most cost-effective and highest-volume elastomer on the market. Although its physical properties are slightly worse than those of natural rubber, SBR is tougher and more resistant to heat and cracking and can easily be replaced by natural rubber in many applications. With the exception of silicone, butadiene has the lowest glass transition temperature of any commercially available elastomer and offers exceptionally good performance at temperatures as low as -62° C (-80° F).

Main Properties
Very good elasticity, tensile strength, abrasion resistance and flexibility at low temperatures.

Limits
Poor resistance to ozone and sunlight; very low resistance to oils, petrol and hydrocarbon solvents.

Article NameColorApproval and PropertiesCross-linking / TypeTemperature °CShore AArticle Number
Trygonal specific
PDF
Data Sheet
SBR 45blacksulphur cross-linked-40 / +1004580-12-45000

Overview AU Compounds

Material Description
Polyurethane is characterised by the combination of hardness with elasticity, excellent abrasion resistance and high tear resistance. It can be either ether or ester based. The ester-based polymer is superior in resistance to abrasion and heat; the ether-based polymer has better flexibility at low temperatures. Polyurethanes are available in both liquid and solid form. Polyurethanes are mainly used in applications that require a combination of their excellent properties: Toughness, tensile strength and abrasion resistance.

Main Properties
Excellent abrasion and tear resistance; very high tensile strength with good elongation; excellent weather, ozone and sun resistance; good oil and petrol resistance; excellent adhesion to textiles and metals.

Limits
Poor resistance to alkalis, acids and oxygenated solvents; poorer resistance to hot water.

Article NameColorApproval and PropertiesCross-linking / TypeTemperature °CShore AArticle Number
Trygonal specific
PDF
Data Sheet
PUR 60natureperoxide cross-linked-30 / +1106080-13-60000
PUR 70natureperoxide cross-linked-30 / +1007080-13-70000
PUR 70blackperoxide cross-linked-30 / +1107080-13-70001
PUR 80beigeperoxide cross-linked-30 / +1108080-13-80000
TPU 93fire redFDA and EG compliant-20 / +809380-13-93000
HPU 94redFDA compliant-30 / +1109480-13-94000PDF, 219 KB
HPU 94green-30 / +1109480-13-94002PDF, 216 KB

Overview ACM Compounds

Material Description
The heat resistance of acrylic is better than that of most elastomers, with the exception of silicone, fluorosilicone and fluorocarbon. It is suitable for both hot air and hot oil over long periods of time. Acrylic has moderate resistance to cut growth and bending cracks. The use of acrylic is limited by its low flexibility at low temperatures. However, some types of acrylic glass may have improved flexibility at low temperatures at the expense of tensile strength and oil resistance.

Main Properties
Excellent resistance to heat and hot oil; excellent resistance to weathering, ozone, sunlight and oxidation; very good resistance to petrol and oil, especially sulphur-containing substances.

Limits
Poor resistance to alcohols, alkalis, solvents and aromatic solvents; limited flexibility at low temperatures; lower resistance to water and steam.

Article NameColorApproval and PropertiesCross-linking / TypeTemperature °CShore AArticle Number
Trygonal specific
PDF
Data Sheet
ACM 70black7080-15-70005

Overview of FFKM Compounds

Material Description
Perfluoroelastomers are products with a high utility value.

Main Properties
The best combination of chemical and high temperature resistance of all elastomers. Thermal stability depends on the polymer and curing chemistry. Peroxide crosslinking perfluoroelastomers have similar thermal resistance to FKM, while proprietary curing systems (such as Kalrez®) offer temperature resistance up to 327 °C with specific polymers.

Limits
The performance of perfluoroelastomers is limited at lower temperatures.

Article NameColorApproval and PropertiesCross-linking / TypeTemperature °CShore AArticle Number
Trygonal specific
PDF
Data Sheet
FFKM 65black-30 / +2306580-18-65000PDF, 184 KB
Perfluorpolyetherblackperoxide cross-linked-50 / +1807080-18-70005PDF, 188 KB
FFKM 75blackFDA compliant2757580-18-75007PDF, 183 KB
FFKM 75whiteperoxide cross-linked3007580-18-75008PDF, 184 KB
FFKM 75blackperoxide cross-linked2307580-18-75009PDF, 187 KB
FFKM 75transparentperoxide cross-linked2007580-18-75010PDF, 182 KB

Media Resistance Guide

With our Media Resistance Guide you can easily check the resistance of our materials to the most common chemicals.

Do you have any questions?

Our team of experts is at your disposal at any time to answer your questions.
