橡胶金属缓冲器的允许负载计算

符合质量标准：NK（天然橡胶）中DIN ISO 3302-1的橡胶金属缓冲器和橡胶金属导轨的技术信息

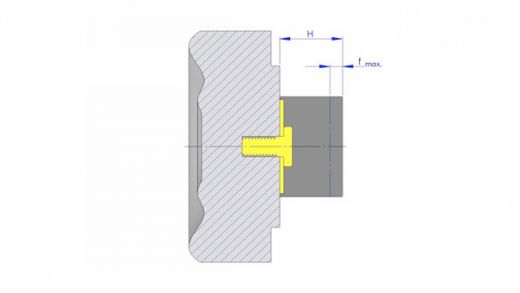

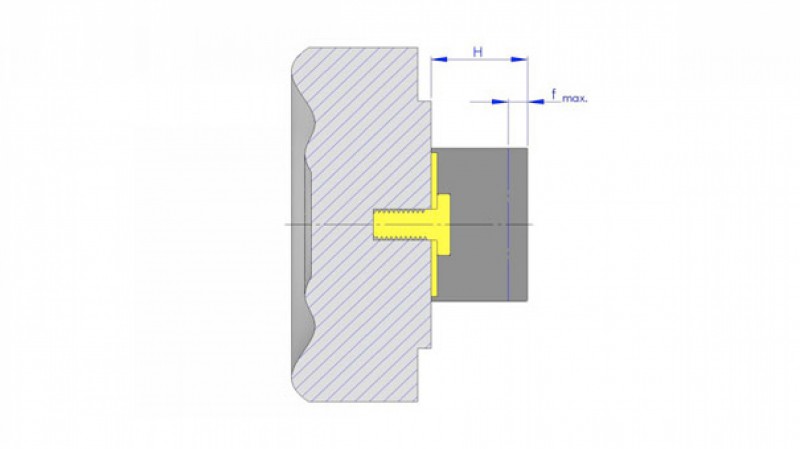

根据弹簧行程确定最大负载fmax

根据弹簧行程确定最大负载fmax

作为最终挡块的负载（冲击负载）-正常（最大值）：fmax = H × 0.50
作为最终挡块的负载（冲击负载）-很少（最大值）：fmax = H × 0.60
恒定负载-静态（最大值）：fmax = H × 0.15
减振：fmax = H × 0.05 至 0.10 × H

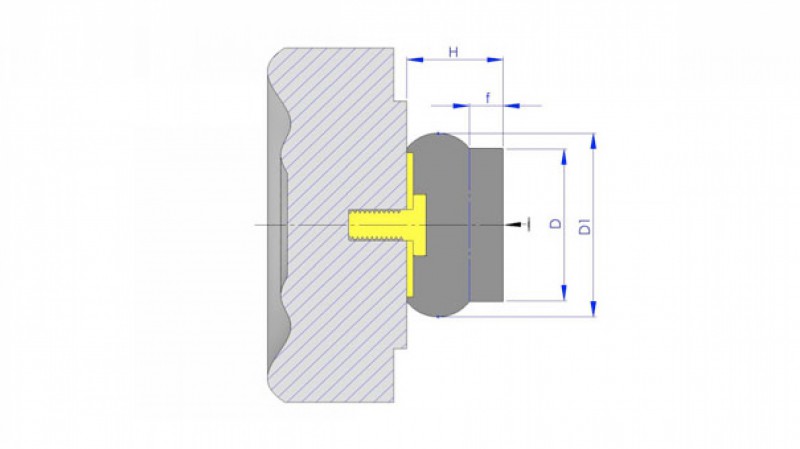

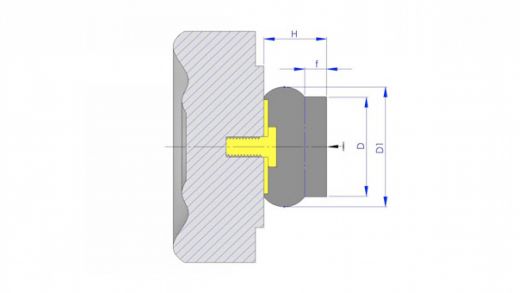

直径上扩展：

直径上扩展：
f = 0,50 × H / D1 = 1,40 × D

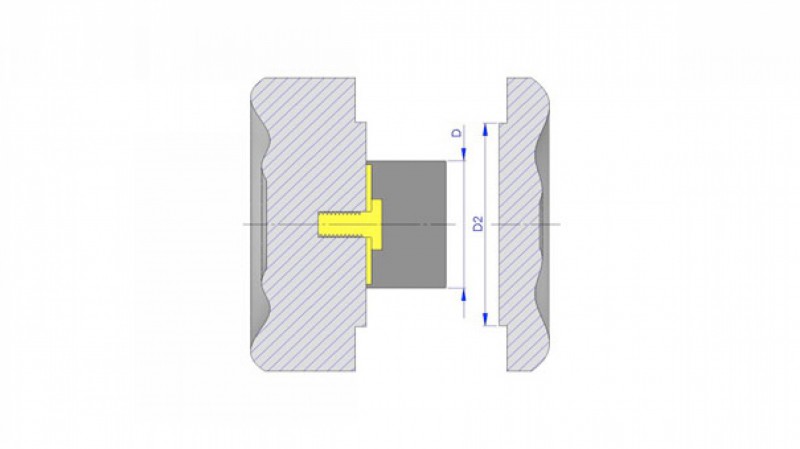

影响区域：

影响区域：
D2 > 1,25 × D

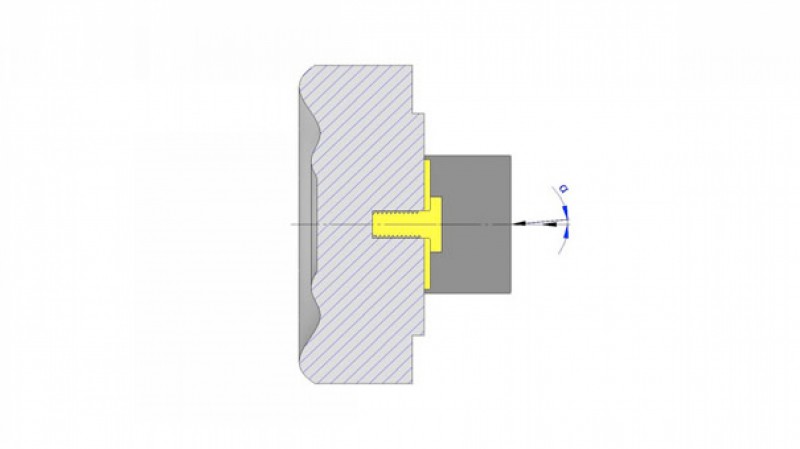

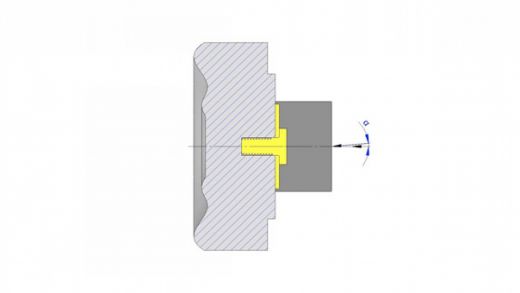

Impact direction

冲击方向：
αmax ± 4°

循环缓冲器

Please enter the values for diameter and rubber height of your round buffer in the following fields to have the form factor k calculated

Form factor k

Read the value for the modulus of elasticity (Ec) as a function of the form factor k from the diagram in the upper right corner.



Result Fzul

矩形缓冲/铁

Please enter the values for rubber height, width and length of your rectangular buffer/rail in the following fields to have the form factor k calculated.

Form factor k

Read the value for the modulus of elasticity (Ec) as a function of the form factor k from the diagram in the upper right corner.



Result Fzul

杨氏模量取决于k

在计算出形状系数k之后，请从下图读取杨氏模量Ec的值（见左图）。


Elastizitätsmodul in Abhängigkeit vom Formfaktor k
